rim painting tutorial Wheel rim coating - SPRAY

Wheel rim painting - step by step

Check how to properly paint wheel rims using products from the NOVOL SPRAY line.

Shopping list
  • PLUS 780 – silicone remover
  • EPOXY PRIMER – epoxy primer
  • WHEEL SPRAY – wheel rim paint
  • CLEARCOAT – clearcoat
  • red abrasive non-woven pad
  • tack rag
  • plastic spreader
  • masking materials: masking paper or protective film, NOVOL masking tape
  • paper towel
  • P180-P240 abrasive paper
  • sanding block

Wheel rim coating

Repair process

Repair stages
Selected
Cleaning
Selected
Masking
Selected
Sanding
Selected
Degreasing
Selected
Priming
Selected
Painting
Selected
Gloss finish

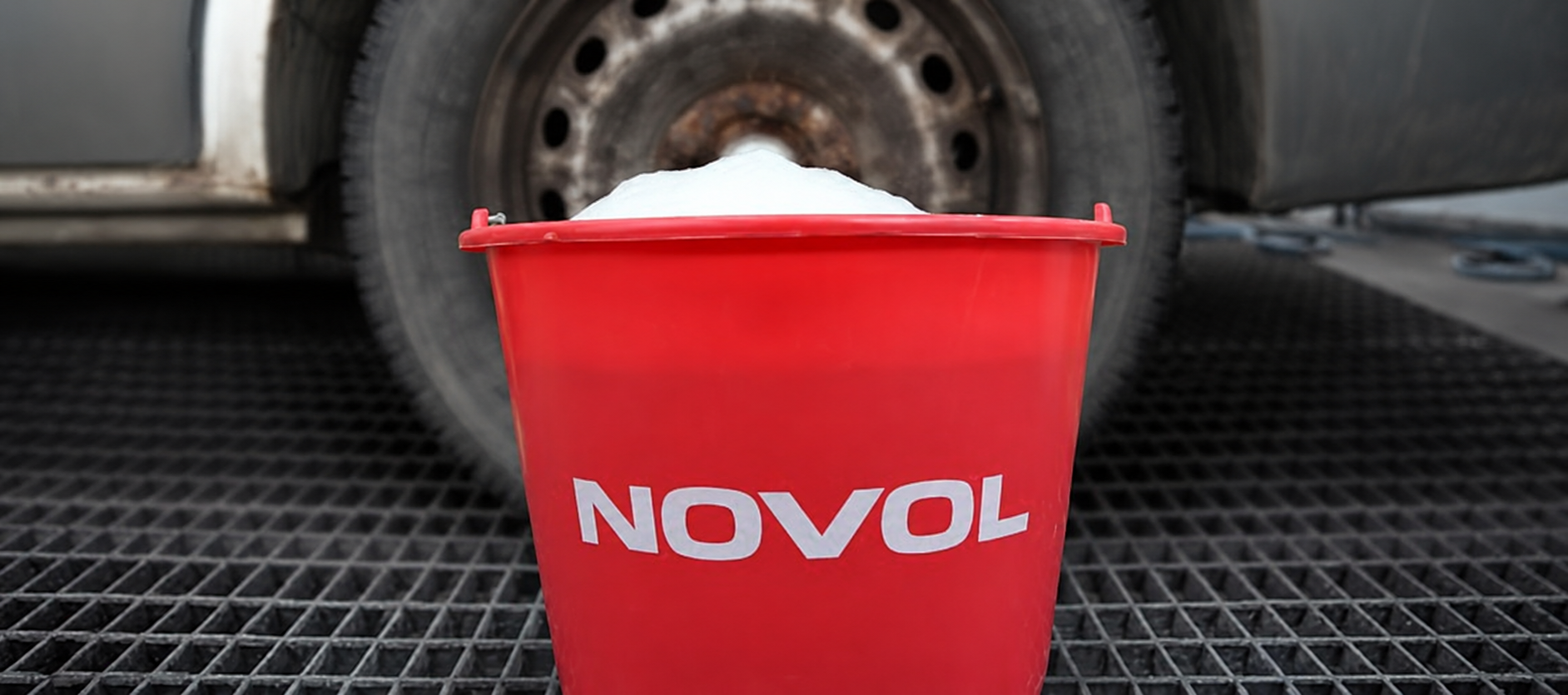

Thoroughly clean the wheel rim to be painted with lukewarm water and detergent.

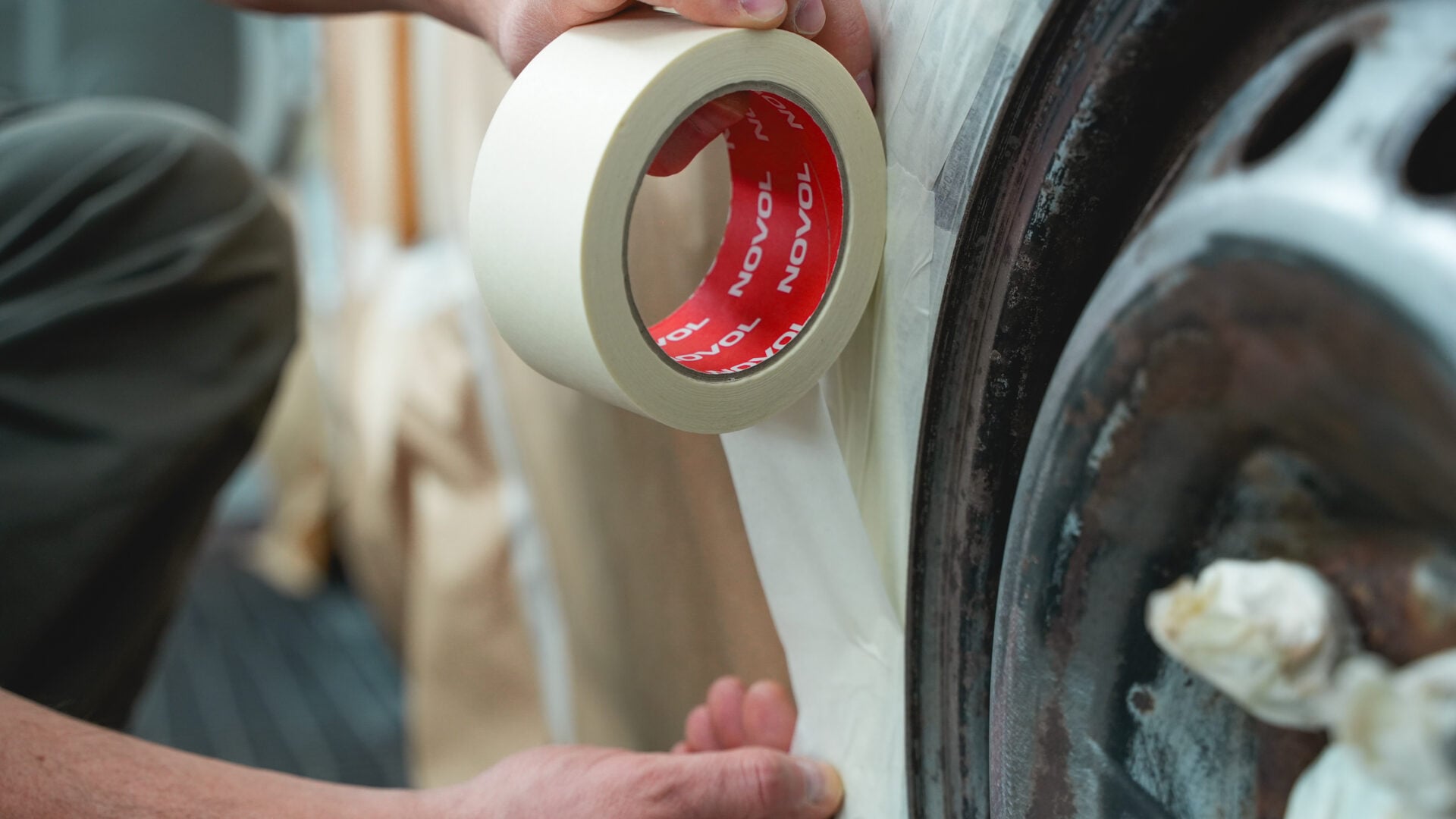

Mask the wheel rim using masking paper and masking tape.

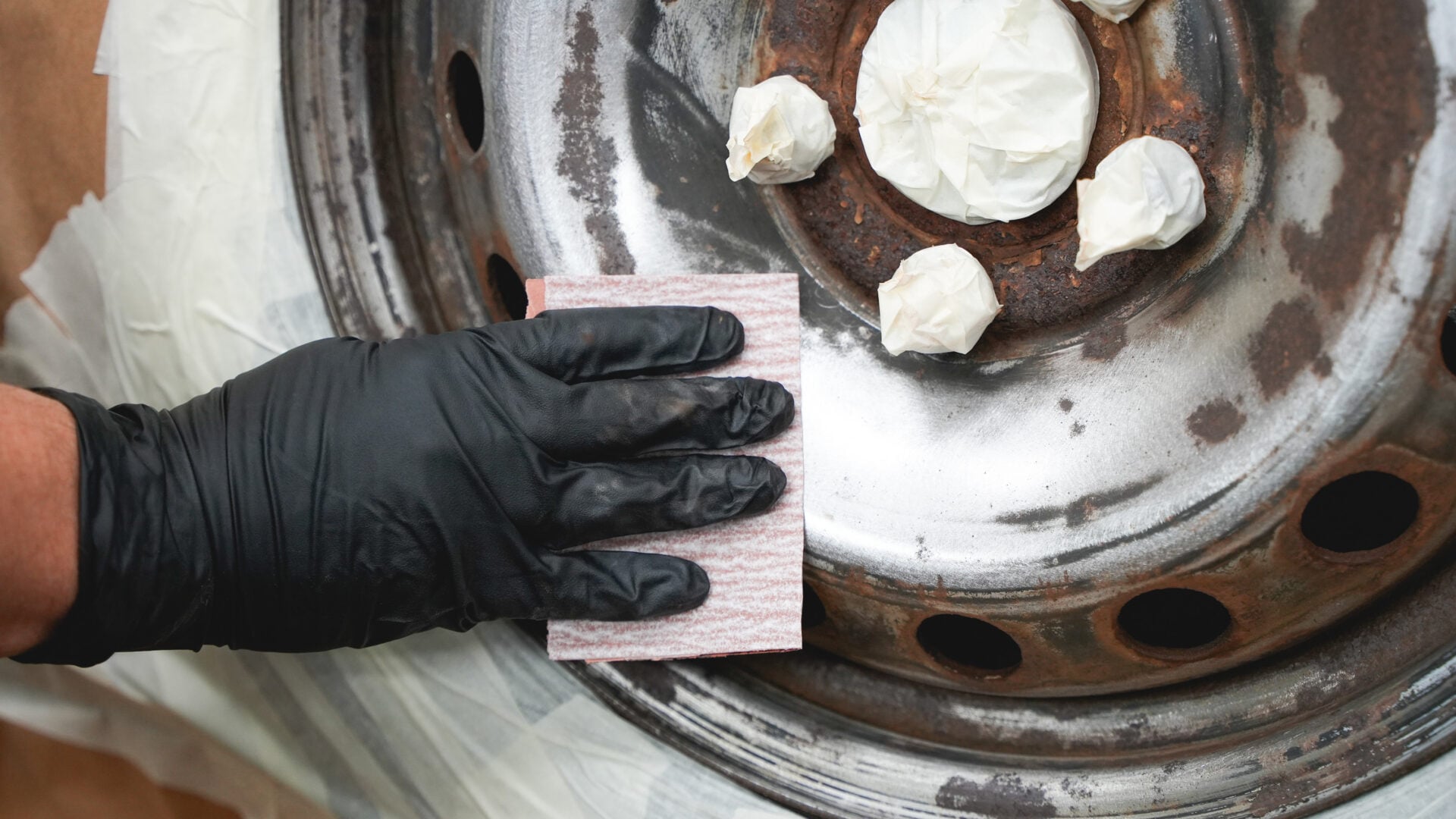

Sand the wheel rim with P180-P240 abrasive paper; remove all loose coatings and rust using a sanding disc mounted on a drill or a wire brush.

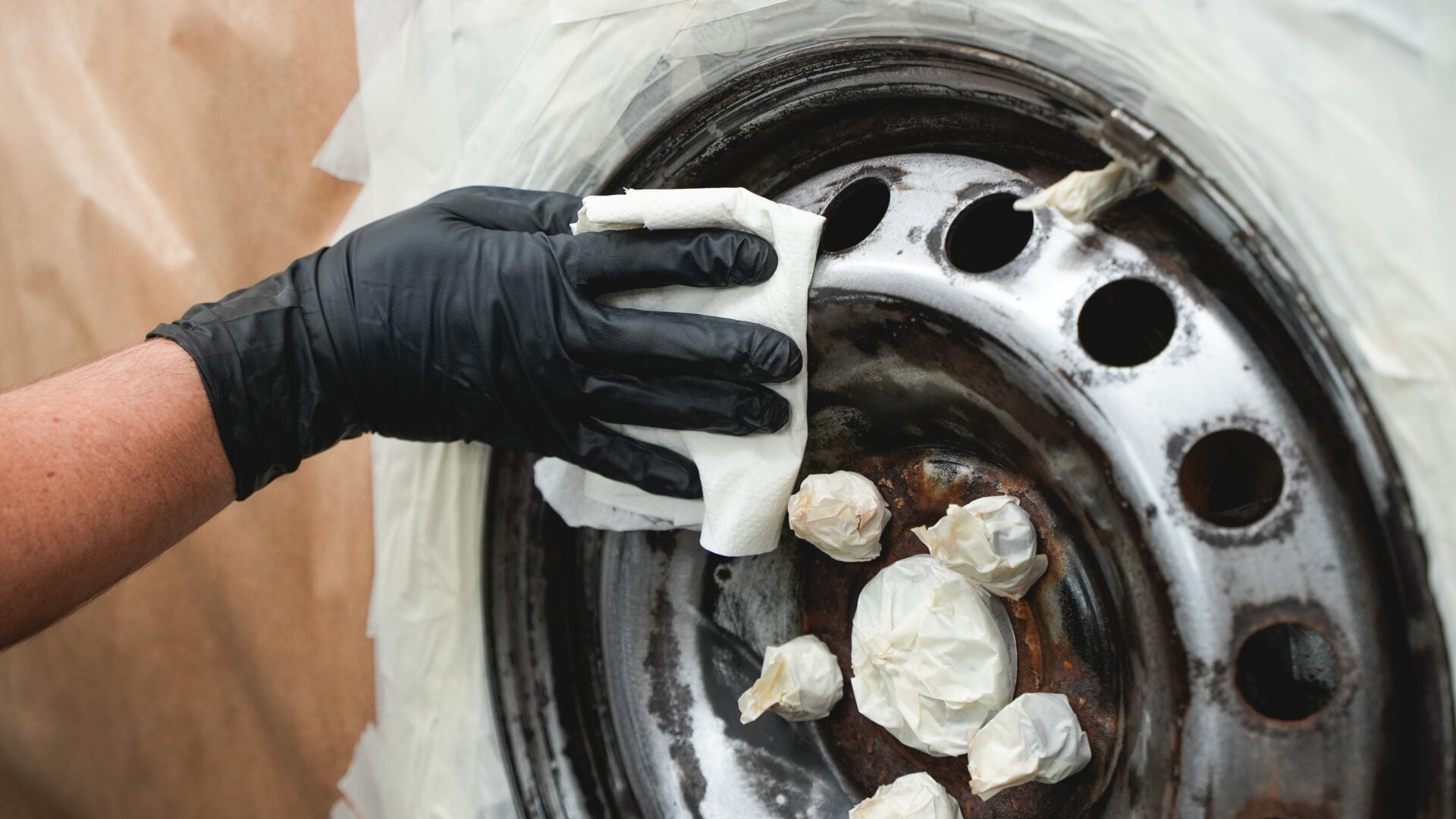

Degrease the washed and derusted wheel rim with the in-process silicone remover PLUS 780, which effectively removes residues of grease, oil, silicones and other contaminants.

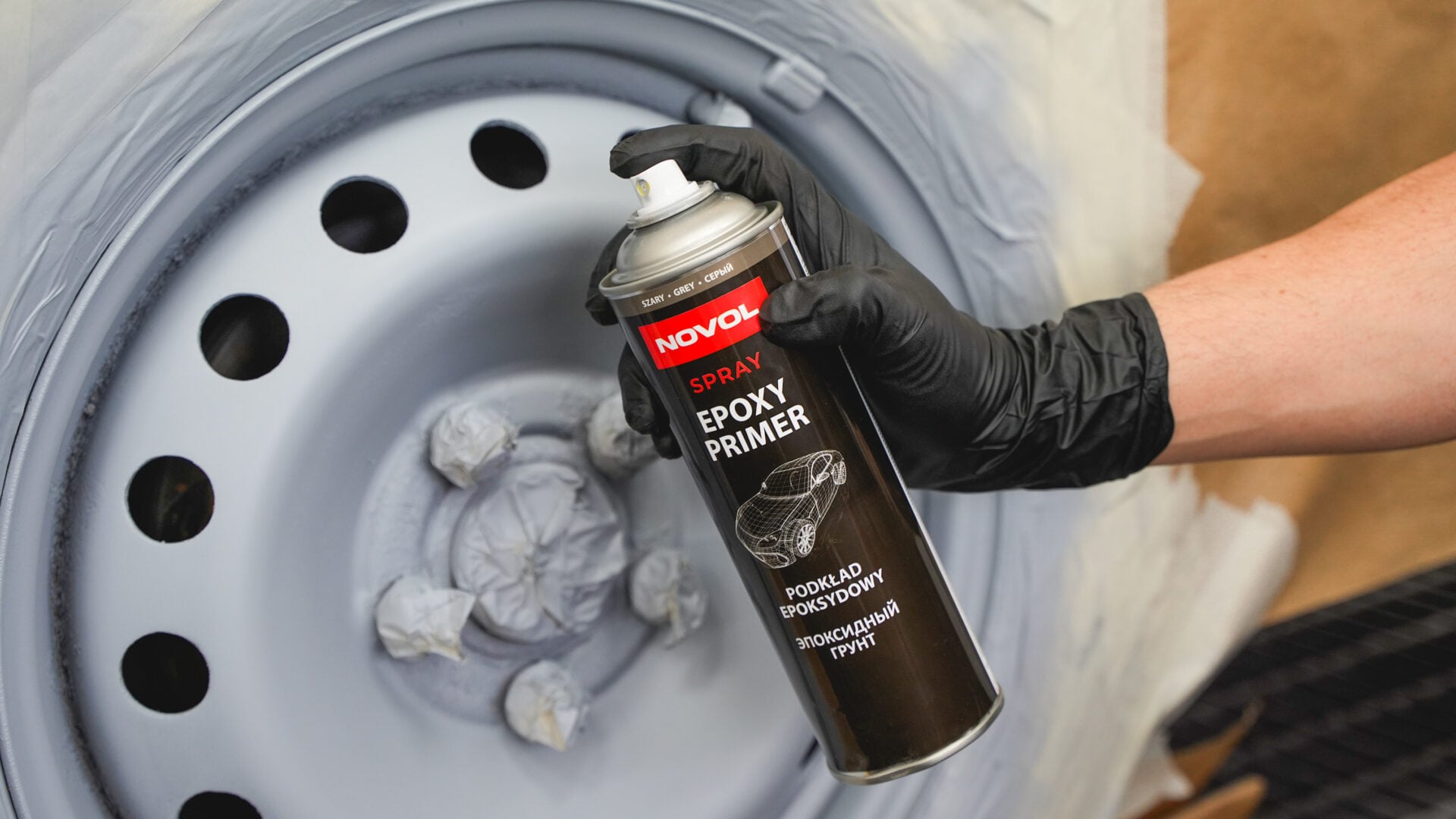

Using EPOXY PRIMER epoxy primer, protect against corrosion the areas that have been sanded through to bare metal.

EPOXY PRIMER - SPRAY
Primers
Primers

EPOXY PRIMER

Anti-corrosion, epoxy spray

15 min / 20°C

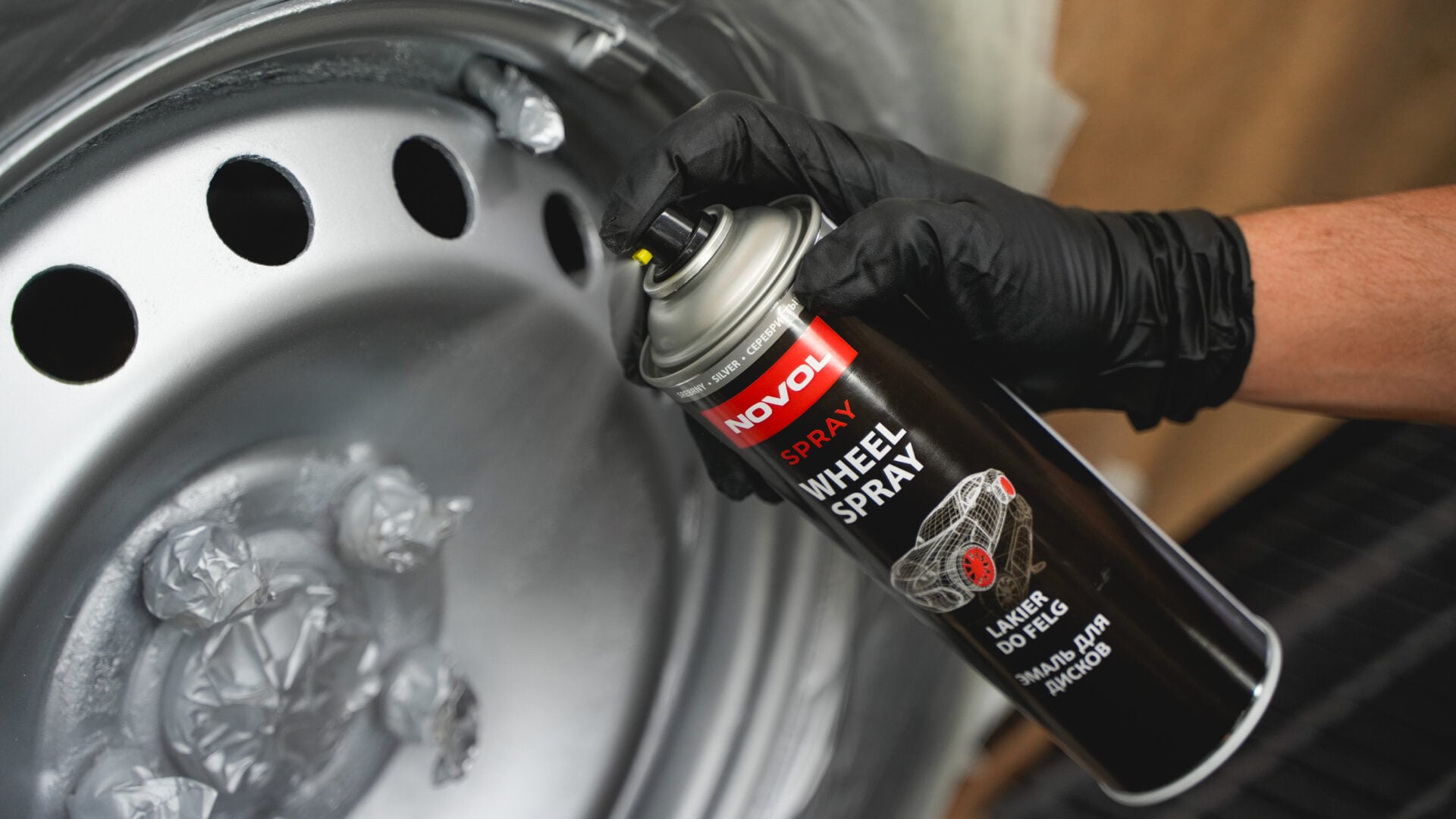

Apply WHEEL SPRAY paint in the selected shade (silver, steel, matt black or black).



  • mix the paint thoroughly by shaking the can for 2 min
  • apply 2-4 coats (flash-off time between coats: 5-10 min)
  • drying time: 2 h/20 °C
  • after use, clean the nozzle for 5 s by turning the can upside down
WHEEL SPRAY - SPRAY
Enamels
Enamels

WHEEL SPRAY

Spray topcoat for rims (various colours). Very easy application

2h / 20°C

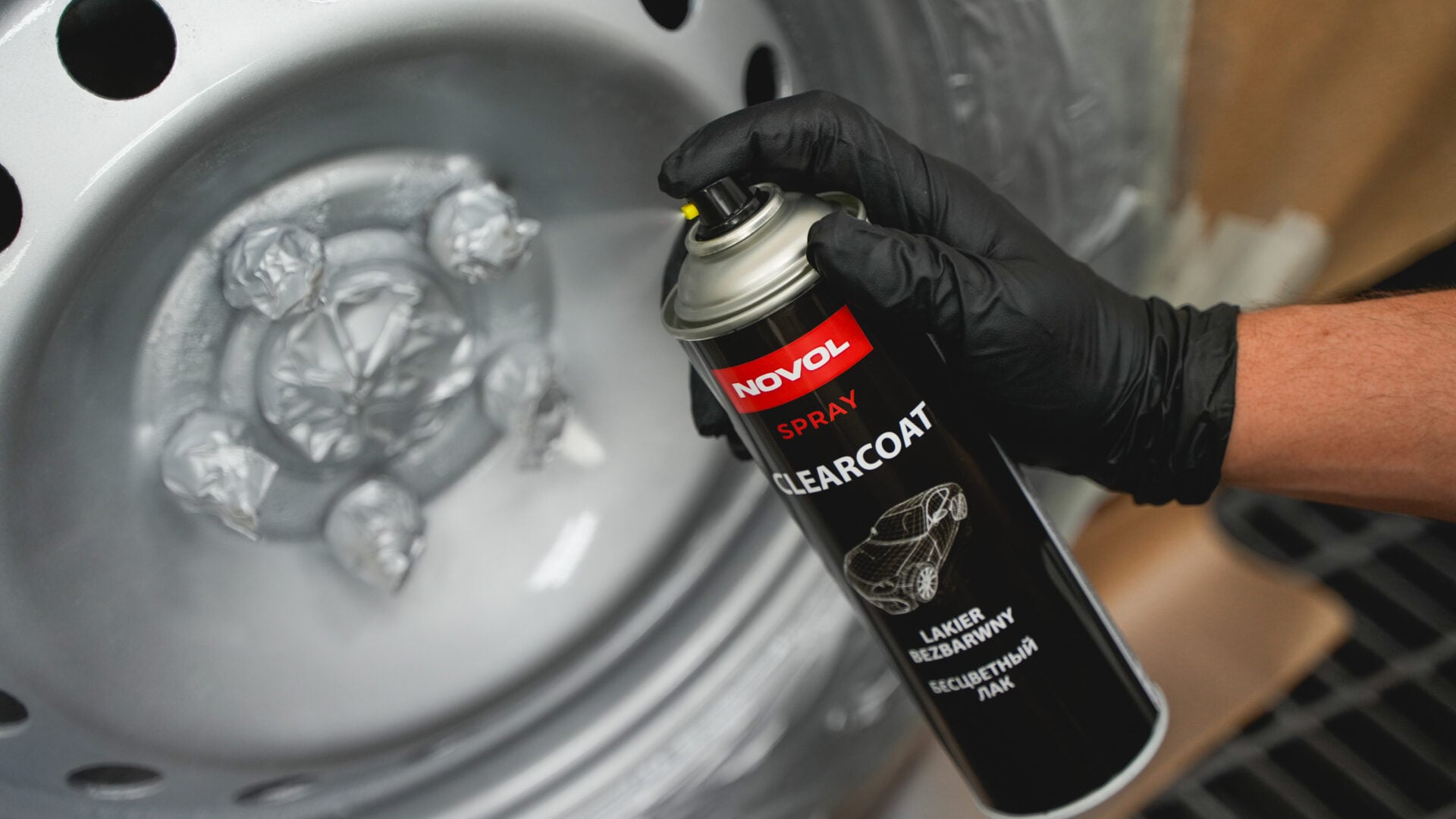

If you want the wheel rim to have a higher gloss (WHEEL SPRAY leaves a satin finish), apply CLEARCOAT clearcoat.



  • mix the clearcoat thoroughly by shaking the can for 2 min
  • apply 2-3 coats (flash-off time between coats: 5-10 min)
  • drying time: 2 h/20 °C
  • after use, clean the nozzle for 5 s by turning the can upside down
CLEARCOAT - SPRAY
Clearcoats
Clearcoats

CLEARCOAT

Spray clearcoat. For spot repairs

1h / 20°C
